The Importance of Accessibility Annotation in Figma Wireframes

"Accessible design is good design."

Steve Ballmer

Emphasizing the universal importance of accessibility is crucial for creating effective products. In today’s digital landscape, accessibility is essential for designing user-friendly and inclusive experiences. As designers, we have a responsibility to ensure our designs are accessible to all users, including those with disabilities. One effective approach is to use accessibility annotations in Figma wireframes. These annotations guide developers and designers in implementing accessibility features, making the final product usable by everyone, regardless of their abilities.

We have several accessibility annotations available, and while each one is important, there are six key annotations that are particularly crucial for designers to include in their wireframes.

1. Heading Annotations
2. Bolt Annotations
3. Image Description Annotations
4. ARIA Label Annotations
5. Announcement Annotations
6. ARIA Live Region Annotations

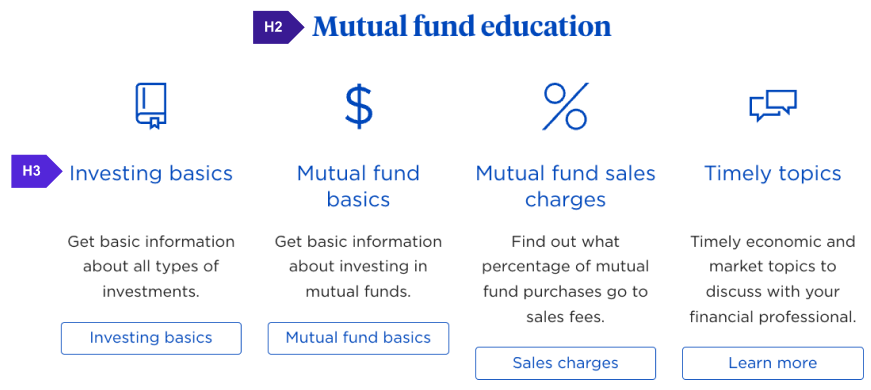

• The Role of Headings in Structured Content: Headings play a crucial role in organizing content and providing structure to web pages. By annotating headings in wireframes, designers can ensure that they are marked up correctly in the final product.
• Why It’s Important: Headings structure content and provide a clear hierarchy, which helps all users, including those using assistive technologies (AT) like screen readers, to navigate through the content efficiently. Properly marked headings enhance readability and comprehension, facilitating a logical flow of information.
• WCAG Rules: WCAG[1] 2.2 Success Criterion 1.3.1 (Info and Relationships) and 2.4.6 (Headings and Labels) emphasize the importance of using proper heading structure allows users to easily understand the hierarchy of information on a page.
• Implementation: In Figma, use accessibility annotations to indicate the hierarchy of headings (H1, H2, H3, etc.). Ensure that headings are used consistently to reflect the document's structure.

---

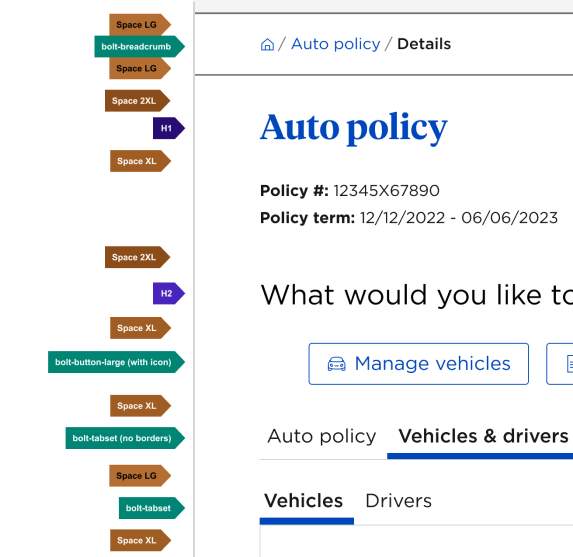

• Leveraging Bolt’s Components for Built-in Accessibility: Each Bolt components are pre-built, accessible design system elements that can be reused throughout a project. Annotating these components in Figma wireframes helps developers immediately identify which component to use without any guesswork, eliminating the need to re-code.
• Why It’s Important: Using these annotations ensures that accessibility considerations are integrated into the design from the start, reducing the risk of errors.
• Implementation: Annotate in Figma when Bolt’s components are used, specifying their purpose if necessary. This ensures developers are aware that these components are accessible and should be implemented as designed.

---

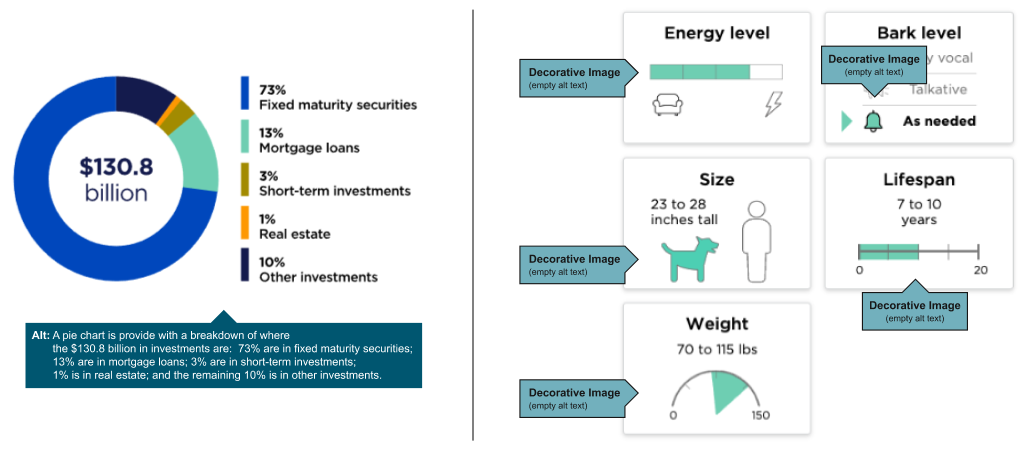

• Alt Text: Differentiating Informative and Decorative Images. Alt text annotations describe images to make them accessible to users who cannot see them. Designers should differentiate between informative and decorative images. Informative images, which convey relevant information, require detailed alt text, while decorative images, which are purely aesthetic, do not contribute to the content and do not need descriptions.
• Why It’s Important: Providing alt text enables screen reader users to understand the content of images. Distinguishing between informative and decorative images ensures that users are not overwhelmed with unnecessary details, allowing those with visual impairments to receive accurate and meaningful information.
• WCAG Rules: WCAG 2.2 Success Criterion 1.1.1 (Non-text Content) requires that all non-text content have a text alternative.
• Implementation: In Figma, annotate images with their respective alt text. Clearly indicate whether the image is informative (providing essential information) or decorative (adding visual appeal without conveying essential information). This guides developers to apply appropriate configurations in code.

---

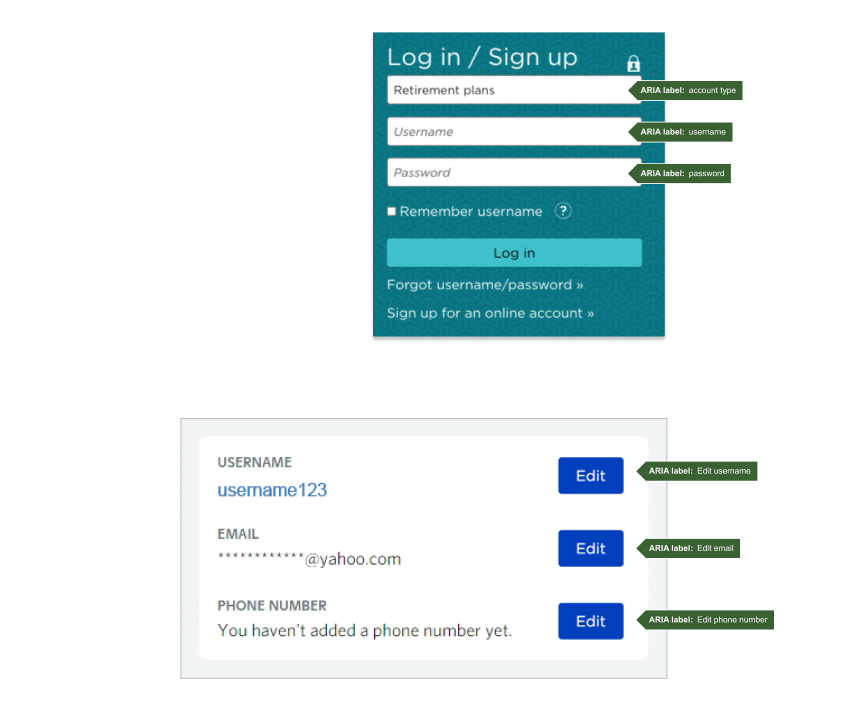

• Implementing ARIA Label Annotations for Clear Communication: ARIA[2] label annotations offer descriptive text for non-text elements like icons, buttons, or interactive components. These annotations are vital for users who depend on assistive technologies to grasp the functionality of these elements.
• Why It’s Important: ARIA labels assign accessible names to user interface elements when native labels are missing or insufficient, enabling screen readers to clearly convey the purpose of these elements to users.
• WCAG Rules: WCAG 2.2 Success Criterion 4.1.2 (Name, Role, Value) addresses the need for accessible names for all interactive elements.
• Implementation: Annotate in Figma any UI elements that require ARIA labels, specifying the exact text to be used. This ensures consistency and clarity in what screen readers will announce.

---

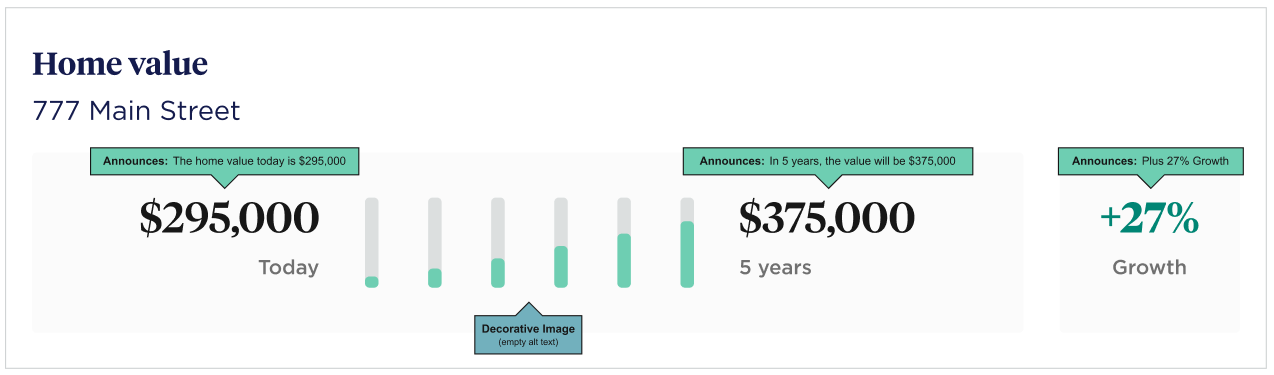

• Enhancing User Experience with AT Announcements: The AT[3] Announcement annotation is intended to offer context for assistive technology users (such as those using screen readers) when the designer is unsure which annotation to apply. This annotation is especially useful for complex row/column table data, dynamic pie/graph charts that change based on user data, or instructions on how to understand layouts.
• Why It’s Important: AT Announcement annotations ensure that users relying on assistive technology understand their current position and the context of the content they are interacting with. This is essential in complex data tables where it’s crucial to communicate which text field a column or row corresponds to. Similarly, for dynamic charts, it helps users comprehend real-time updates and changes in data, enhancing their ability to interact effectively with the content.
• WCAG Rules: WCAG 2.2 Success Criterion 4.1.3 (Status Messages) requires that status messages can be programmatically determined without receiving focus.
• Implementation: In Figma, use annotations to specify what information needs to be announced by assistive technologies.

---

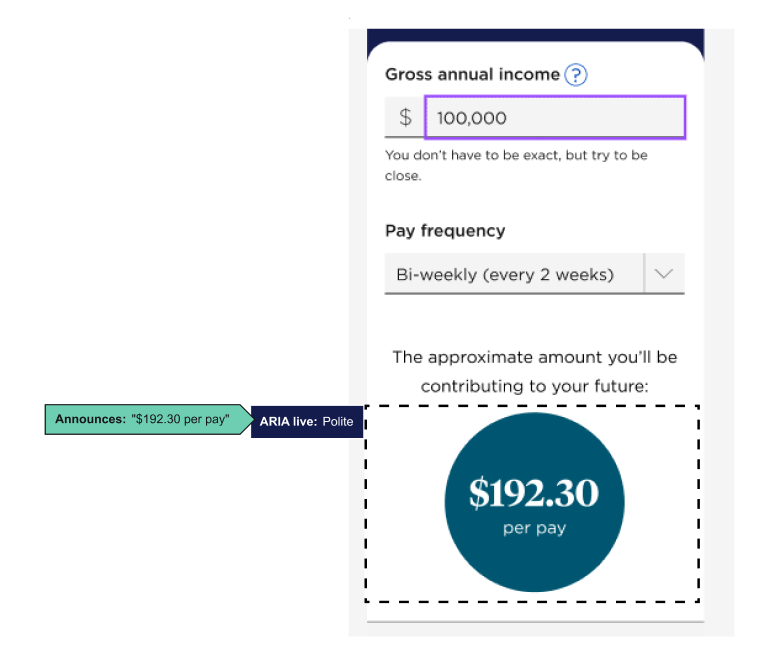

• Real-Time Updates with ARIA live Region: ARIA live annotations are used to indicate that certain content should be announced to users by assistive technologies in real-time. Typically, this would be paired with an AT Announcement annotation to ensure the correct message is conveyed to the user. This is particularly important for dynamic content updates, such as live chat messages or notifications.
• Why It’s Important: ARIA live regions notify screen readers of content changes in real-time, ensuring users do not miss important updates. This is crucial for dynamic content like notifications, live feeds, and chat messages.
• WCAG Rules: WCAG 2.2 Success Criterion 4.1.3 (Status Messages) covers the need for real-time announcements of dynamic content changes.
• Implementation: Annotate ARIA live regions in Figma, specifying the live region’s role and priority (e.g., aria-live="polite" or aria-live="assertive"). This ensures assistive technology users to receive timely and relevant information.
  • aria-live="polite" is used for updates important to the user but not urgent, allowing the screen reader to announce them when the user is idle.
  • aria-live="assertive" is for critical notifications that require immediate attention, interrupting current announcements, and should be used sparingly due to its disruptive nature.

---

Accessibility annotations in Figma wireframes are crucial for ensuring inclusive designs. By adding these annotations, designers provide developers with key information to correctly implement accessibility features, following WCAG guidelines to make digital experiences accessible for all users. Prioritizing accessibility in our design process helps create a more inclusive web.

---
